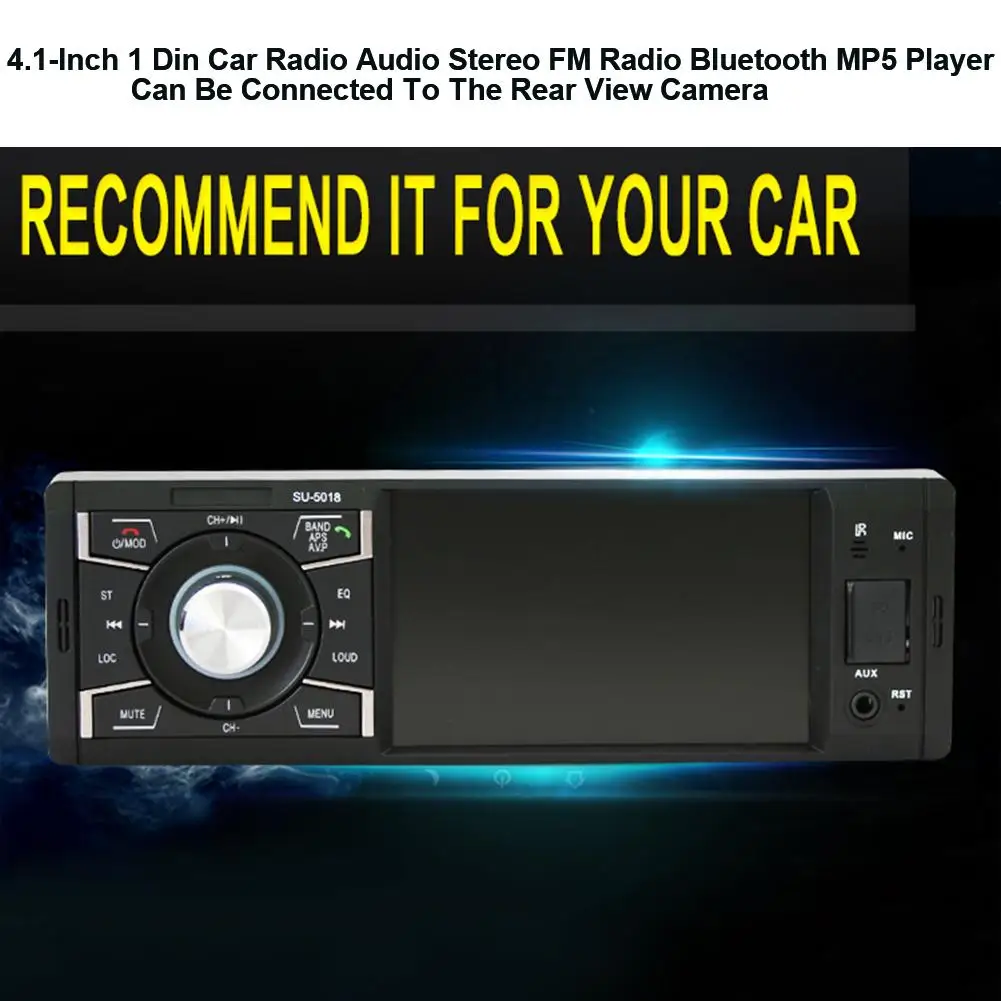

1.UNIVERSAL SINGLE DIN SIZE: The Car MP5 Stereo Size(Fixed Panel) is 188(W)x58(H)MM,
Working Voltage is DC12V for one Battery, Max Output Power is 4X60W,
please check your car radio size with our product before order2.HIGH RESOLUTION: 4.1 Inch TFT 800 x 480 Screen resolution, Support 1080P Video Format
3.MUTI FUNCTION:Support bluetooth and hand free calling, FM Radio, USB, TF Card AUX IN,
Steering Wheel Control and backup Camera.4.Support the video playback format of: RM/RMVB/MP1/MP2/DIVX/XVID/MP4/H263/H264/FLV/3GP/SWF/AVI/ASF/MJPEG, etc.
Specification(approx.):Support video format: RM / RMVB / MP4 / FLV / MKV / 3GP / AVI / ASF / SWFMP1 / MP2
Support audio format: MP3 / WMA / WAV / OGG / FLAC / APE
Compatible image format: JPG
Supports FM function. (frequency: 87.5-108 MHz)
Compatible with Bluetooth calls and hands-free
Brake support reminder function
Reverse support of video input
Support storage device: USB disk / TF card device auxiliary audio input
Digital Electronics watch function
Screen size: 4.1 inches
Screen resolution: 854x480
OSD Language: Russian EnglishGermanyFrench, Italian, Spanish, Japanese, Portuguese, Chinese,
Input: 12 V DC
Output: 4x60 W
Product weight: about 0.422kg
Package weight: 0.56kg
Product size: 17.80*10.50*5.80cm/7.01*4.13*2.28in
Package size: 21.00*16.10*8.40cm/8.27*6.34*3.31in
Reminder kindly:1.This car radio is not integrated and includes no memory card or TF card inside.
2.There is no CD room for the CD player. This is not compatible with CD / DVD player.
3.This is the car radio does not support steering wheel control and GPS functionality
4.The remote control comes with the battery, and the battery can be replaced if it dies, battery model is CR2025.
List:1*MP5 car player
FAQ：Q1.Why is the radio can not turned on?
1.Check the radio voltage of the car: DC 12 V
2. When you try this car radio, you can combine the red and yellow wires
and connect them to the positive side of the power supply. black line a Negative power supply.3.replace the same type of insurance to test the car radio.
Note: use our power cables to connect the car radio, it is not possible to insert the original car plug directly into our machine.Q2.Why the car radio is showing "There is no signal when backing up?
1.Check if the line of the camera is correctly connected to the car radio
2.Note: the video port of the rear camera must insert the "CAMIN" port of the car radio.
Q3.Why the camera's screen. "" And "I can not watch video while driving" when I use USB to watch videos?
1.Turn off the "Video warning" function in the configuration, then it will be fine.
Q4.Why the car radio to show time after turning this off?
1.That time clock is a function for the car radio, which can not be removed. In fact, the car radio has been turned off, it saves time for people to see it.
2.If you do not need it, you have to unplug the positive and negative energy.
Q5.Why does not sound on the car radio when the music?
1. When you are not using our original audio cable, check if your audio cable is suitable for our camera.
2. Check if there is any collision between the lines.
3. If the line is connected, there will be no sound when the speaker cable touches the speaker wire. There is also no sound when the power cord touches the speaker wire.
4. If the problem is still here, use a single speaker to connect a group of audio cables to test the car radio. The four speaker cables are connected separately to see if there is any sound.
Q6.Why can not search for FM?
1.No radio antenna is inserted.
2.Check if the radio antenna is plugged in. Enter more antennas several times so that it is well in contact.
3.The signal of your location is not good. Go to a better place to try again.
4.The radio antenna in the car is broken / has no effect; replace the radio antenna and try it again.
Q7.Why can not connect the Bluetooth of the car radio?
1.Opens the phone's configuration interface, opens Bluetooth in the Bluetooth function, searches for Bluetooth devices,
finds the Bluetooth model of the player to pair it; if you need a pairing code, enter 0000; If not, try 1234 or 123456.
Try to use another mobile phone to try this function. all methods are correct and can not yet use Bluetooth,
unplug the plug on the back of the player and plug it in after 3 minutes.
